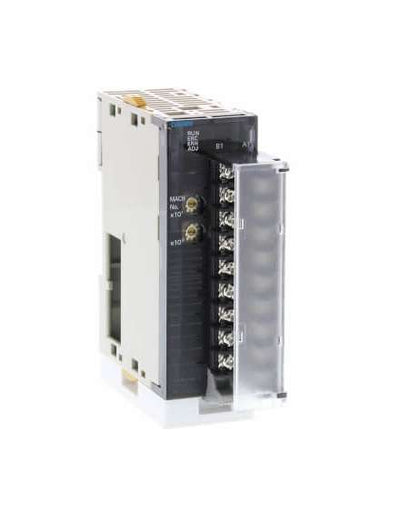

Analog output unit 8 x output 1 to 5 V 0 to 5 V 0 to 10 V -10 to 10 V resolution 1:4000 scalable to +-32000 or 1:8000 screw terminal

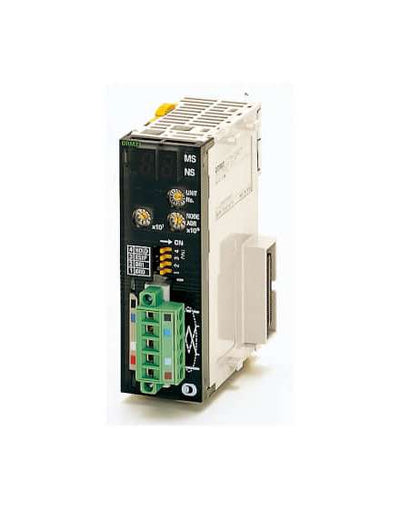

DeviceNet master/slave, equipped w/remote I/O communications for Master and Slave functionality (fixed allocations or user-set allocations), controls for up to 32,000 points per Master, message communications

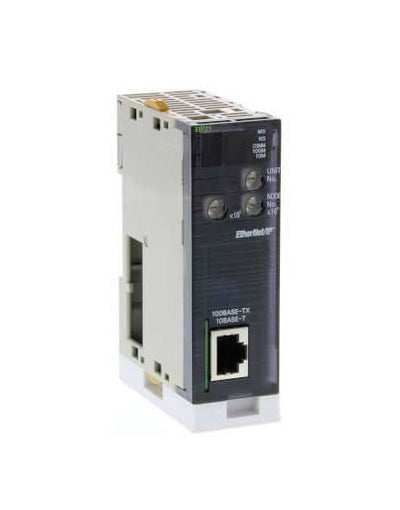

EtherNet I/P module, STP (shielded twisted-pair) cable of category 5, 5e, or higher, tag data link message service communications, 1 unit numbers word, 410 mA 5/DC

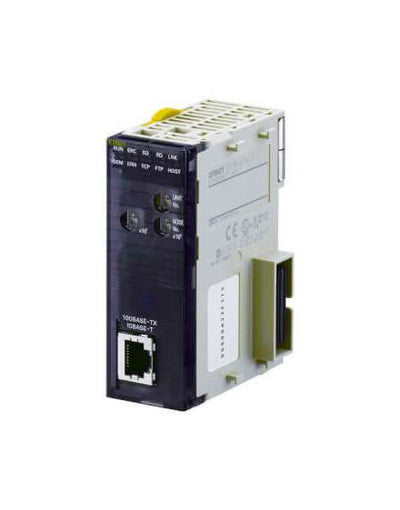

Ethernet unit 100Base-TX and 10 Base-T 1 x RJ45 socket TCP/IP & UDP/IP socket services FTP SMTP FINS

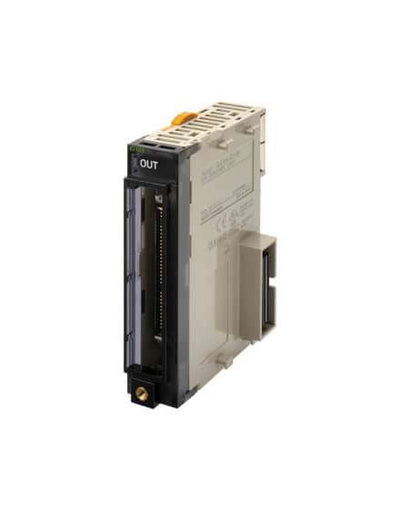

Expansion I/O control unit connects to right hand side of CPU

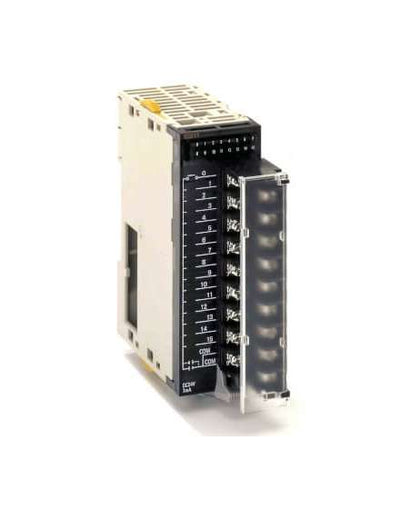

Digital input unit 16 x 24 VDC inputs screw terminal

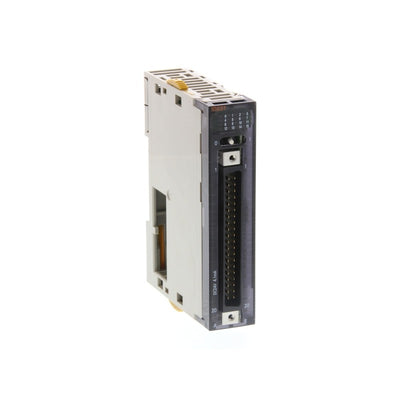

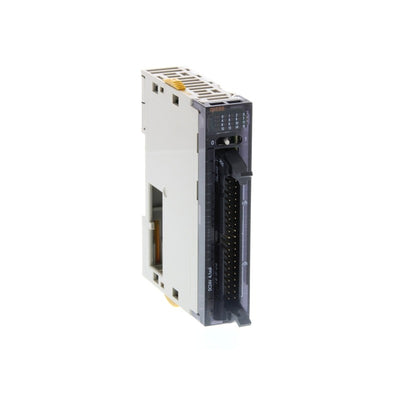

I/O Unit, digital input module, 32-point, Fujitsu connection, 4.1 mA at 24/DC

I/O Unit, digital input module, 32-point, MIL connection, 4.1 mA at 24/DC

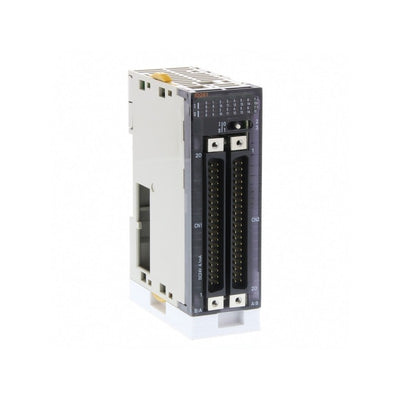

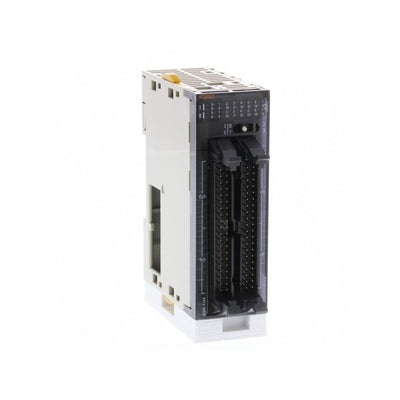

I/O Unit, digital input module, 64-point, Fujitsu connection, 4.1 mA at 24/DC

I/O Unit, digital input module, 64-point, MIL connection, 4.1 mA at 24/DC

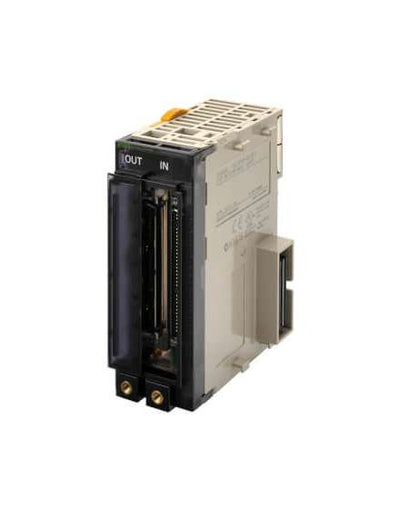

Expansion I/O interface unit connects to left hand side of expansion I/O rack up to 3 expansion racks

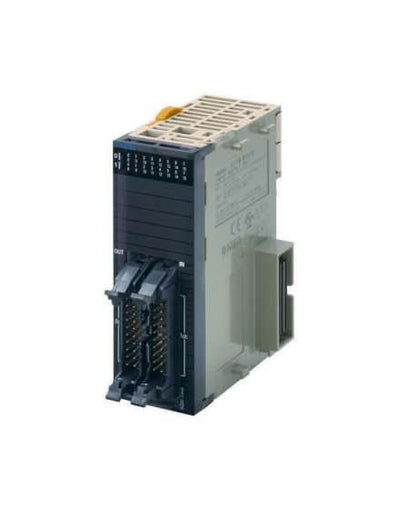

Digital I/O unit, 16 x 24 VDC inputs, 16 x transistor outputs, NPN, 0.5 A, 12 to 24 VDC, 2 A max, 2 x MIL20 connectors (not included)

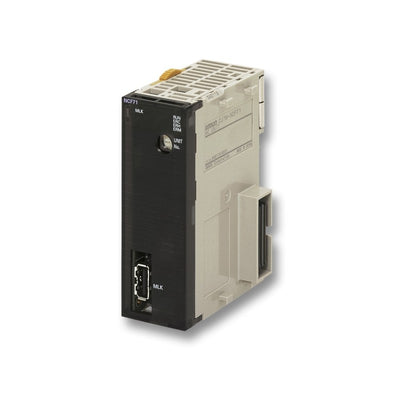

CJ1 Position control module w/MECHATROLINK-II interface, 2 axes, 1-allocated number, 55 deg at 360 mA max at 5/DC

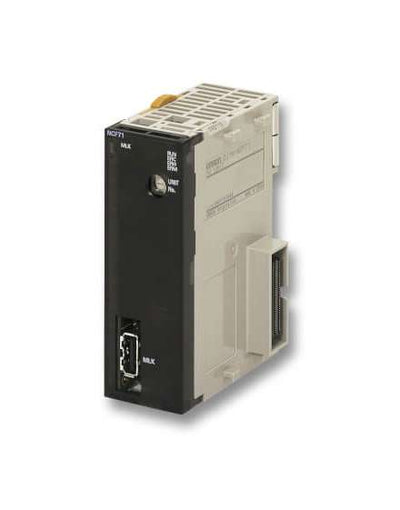

Position control module w/MECHATROLINK-II interface, 16 axes, 1-allocated number, 55 deg at 360 mA max at 5/DC

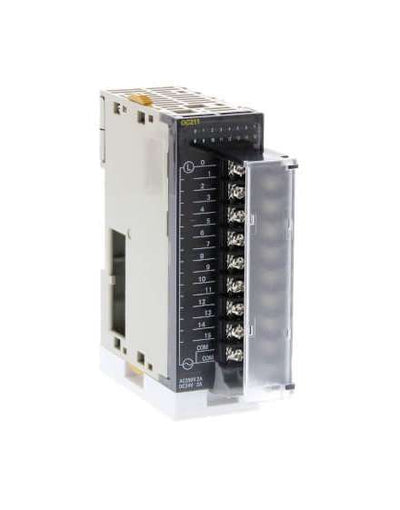

Digital output unit 16 x relay outputs 250 VAC/24 VDC 2 A max screw terminal

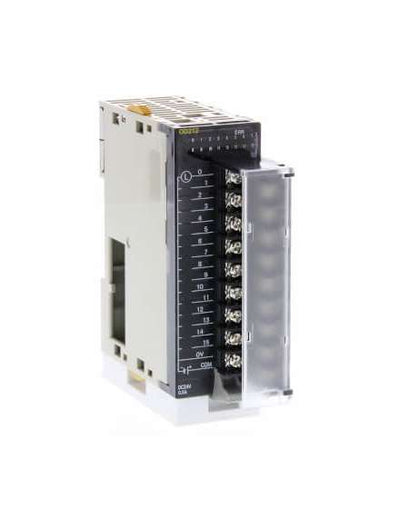

Digital output unit, 16 x transistor outputs, NPN, 0.5 A, 12 to 24 VDC, screw terminal
